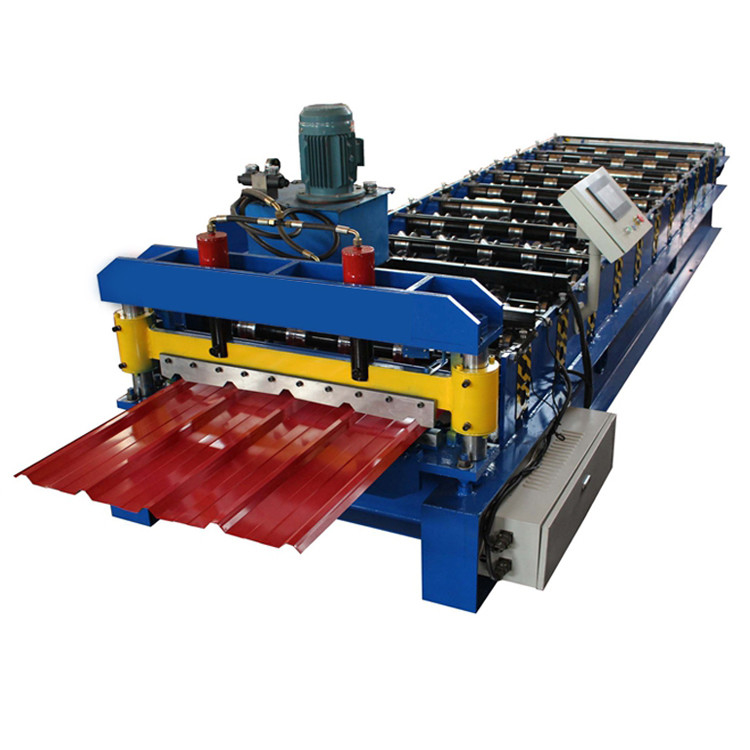

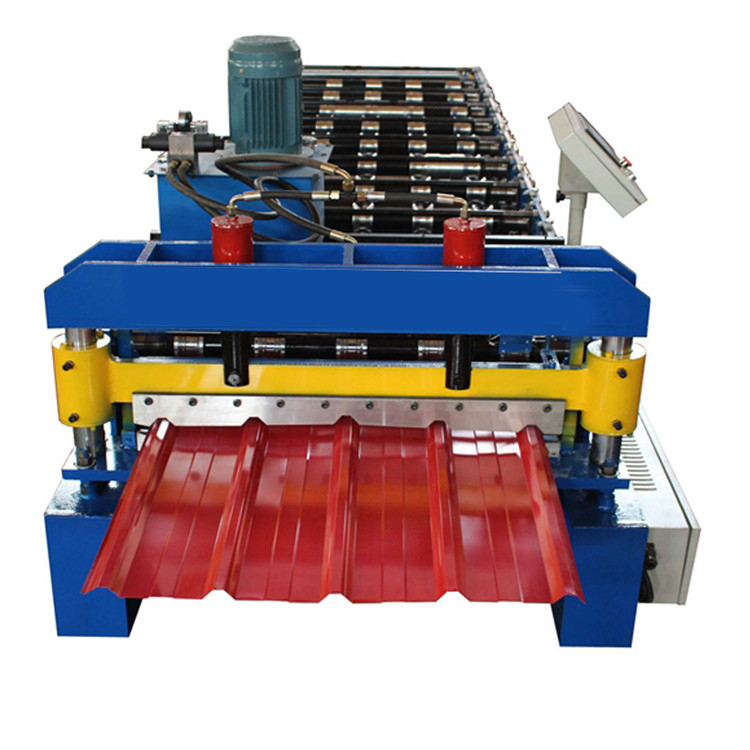

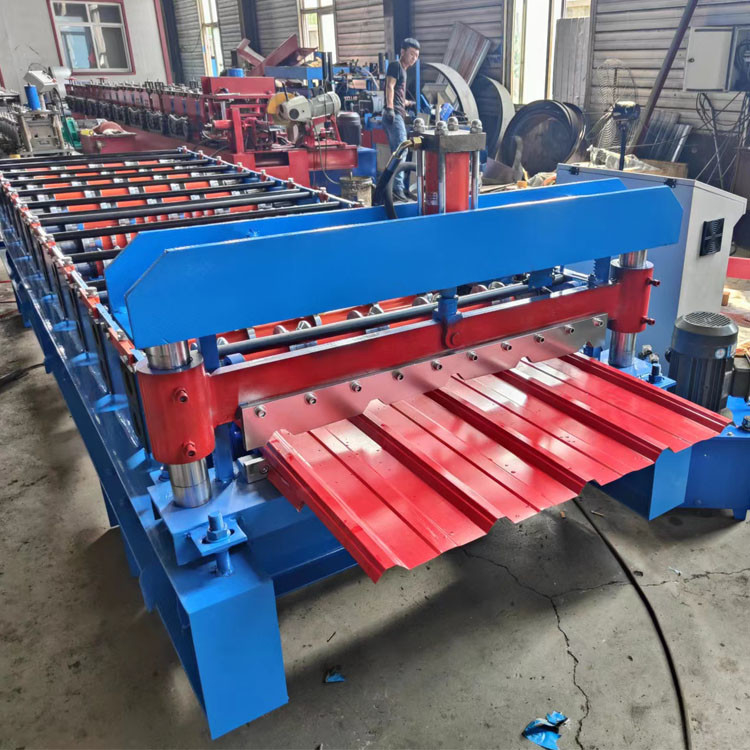

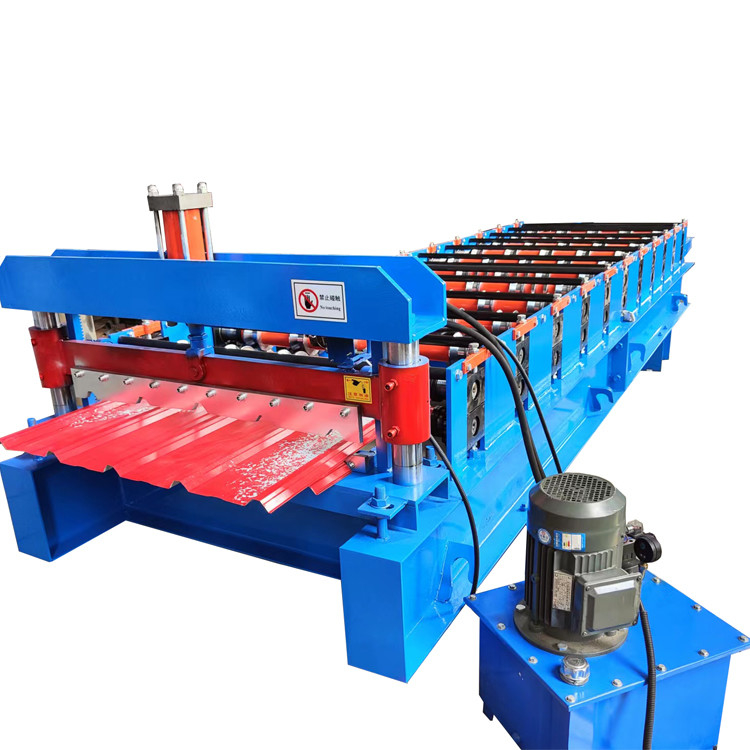

Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine
The roll forming machine is a machine produced by the material, molding, and post -shaped cutting. Its color plate has a flat and beautiful appearance, uniform lacquer pattern, high strength, and durable. Exhibition halls, movie theaters and other rooms and walls.
Specification
| No. |
Item |
Description |
| 1 |
Coil |
Galvalume, Galvanized, PPGI, Aluminum |
| 2 |
Raw Material Thickness |
0.3-0.8mm |
| 3 |
Working Speed |
15-20m/min ( not including the cutting time) |
| 4 |
Roller Station |
12 Raws |
| 5 |
Dimension (L*W*H)
|
58000 mm*1200 mm*1100 mm |
| 6 |
Machine Weight |
4000 KG |
| 7 |
Electrical Control System
|
Delta PLC (can be customized)
|
| 8 |
Drive Motor Power
|
4KW |
| 9 |
Hydraulic Station Power
|
4KW |
| 10 |
Power Supply
|
380V, 60HZ, 3 PHASES(can be customized)
|
| 11 |
Cutting Accuracy
|
±2 mm
|
| 12 |
Driving Mode
|
Single Chain 1 inch
|
| 13 |
Material of Shaft
|
70 mm 45#steel forged
|
| 14 |
Material of Roller |
45# Steel Finish Machining, Plated Hard
|
Application
They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.
Advantage
With more than ten years of experience, Cangzhou famous has reached international manufacturing standards, and its machines are attracting customers all over the world.
With powerful technology, advanced equipment, and high standards, the shutter door bottom machine meets most customers' requirements.
The machine is equipped with an auto feeding system, an accurate counting system, a hydraulic shearing system, and a PLC control system, which makes it stable and long lasting.
We promise to offer you the highest quality, the lowest price, the fastest delivery, and the best customer service. Our goal is to be your best supplier and business partner.
