Name: 850mm Corrugated Type Tile Forming Machine With Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Tektura falista-850
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

850mm Corrugated Type Tile Forming Machine With Hydraulic Cutting

850mm Tile Forming Machine

Hydraulic Cutting Tile Forming Machine

Corrugated Type Tile Forming Machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

Tektura falista-850

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania płytek typu trapezowego o średnicy 840 mm

Surowiec:

Galvalume, ocynkowane, PPGI, aluminium

System sterowania:

PLC

Grubość:

0,25-0,8 mm

Typ płytek:

maszyna do formowania rolek / maszyny do materiałów budowlanych

Stan:

Nowy

Kolor:

Zgodnie z życzeniem klienta

Moc silnika:

3,5 kW

SZEROKOŚĆ SUROWCA:

1000 mm

Waga maszyny:

3,15 T

Podkreślić:

850mm Tile Forming Machine

Hydraulic Cutting Tile Forming Machine

Corrugated Type Tile Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

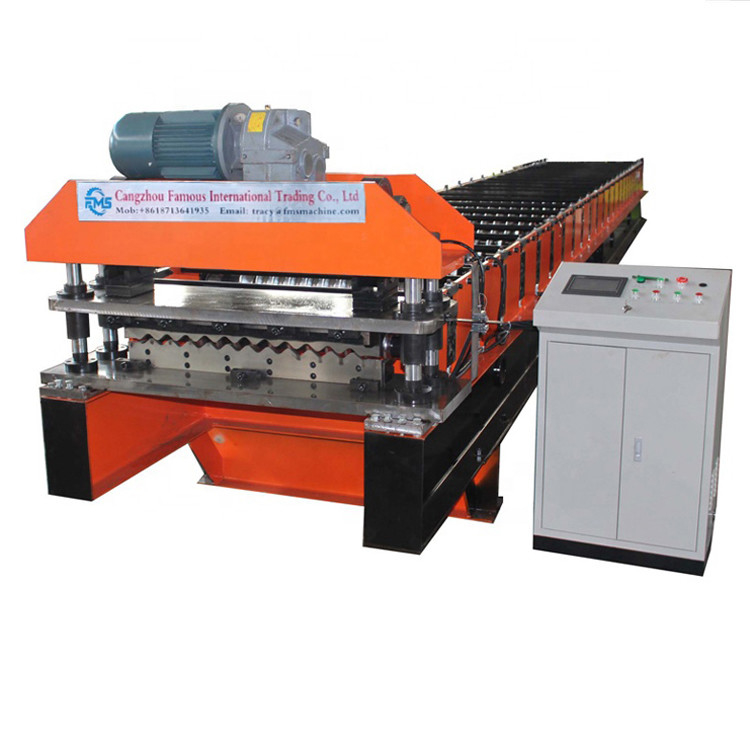

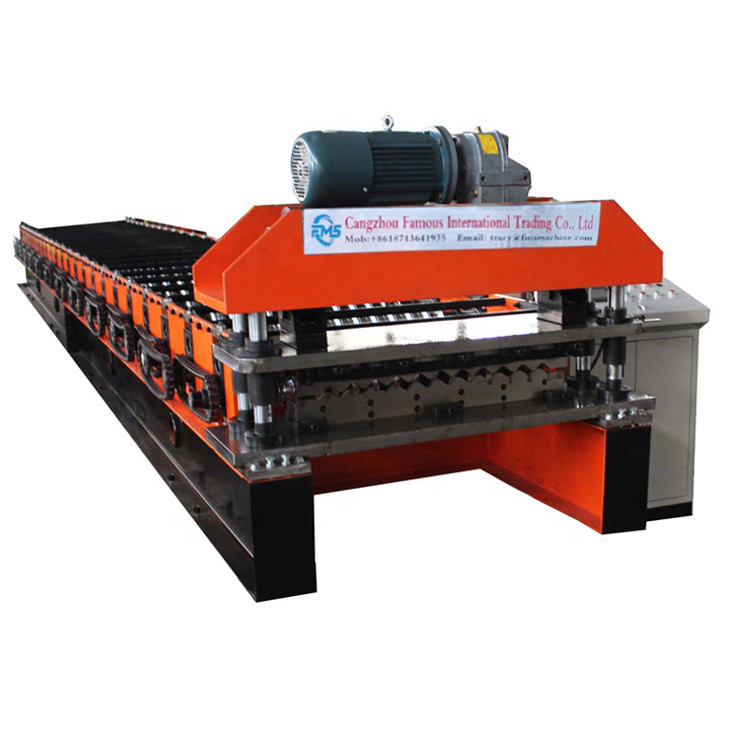

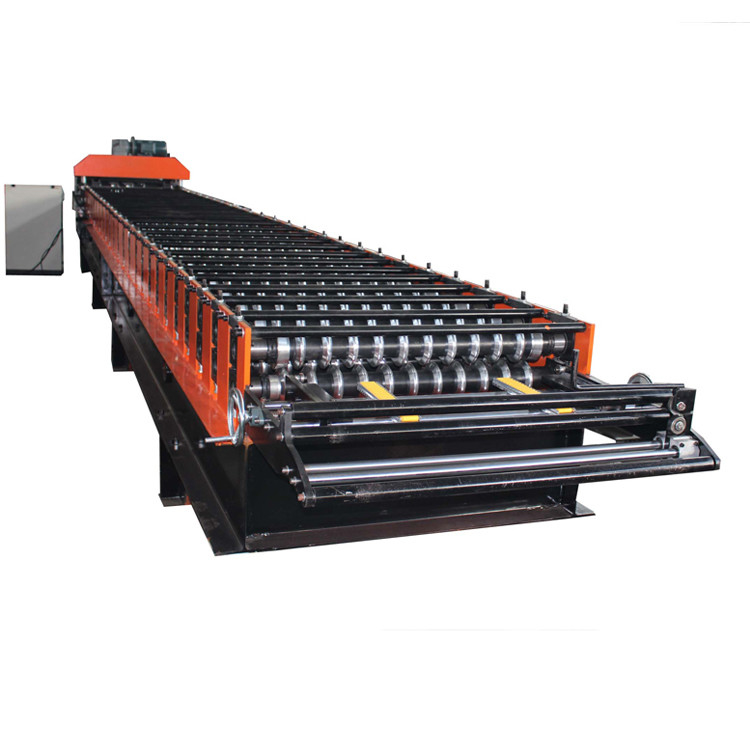

Hydraulic Cutting 850mm Corrugated Type Tile Forming Machine

The Corrugated roll forming machine is a machine produced by the steel coils material, forming and post -shaped cutting. color plate has a flat and beautiful appearance, uniform lacquer pattern, high strength, and durable. Exhibition halls, movie theaters and other rooms and walls.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	8-15m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

They are widely used industrial and civil buildings, such as factory buildings, warehouses, gyms, exhibition halls, theaters, and other rooms, shopping centers, apartments, workshops, walls, and roofs.

Advantage

Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.

the Corrugated 850 roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world
