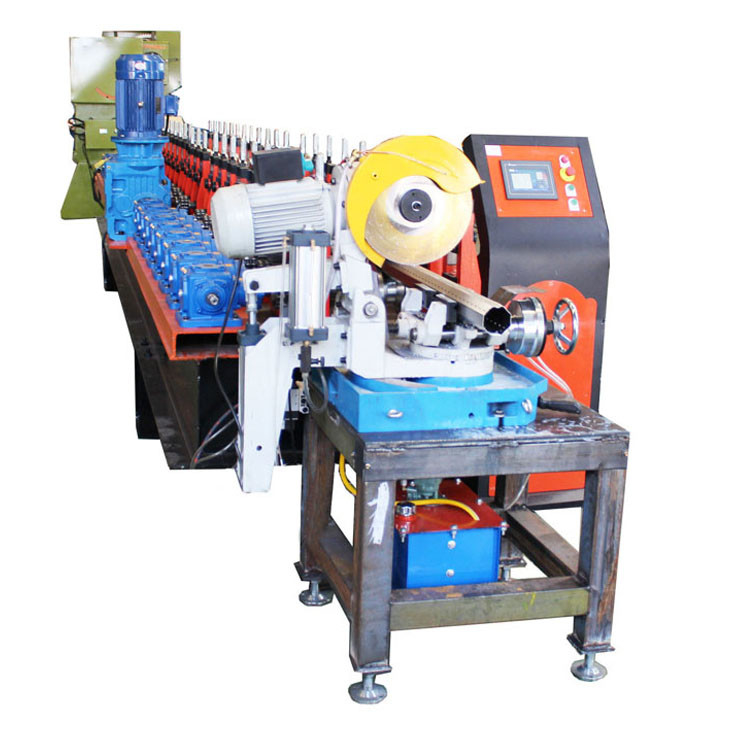

FMS Rolling Shutter Door System Octagonal Tube Axis Roll Forming Machine

Octagonal Tube Axis Roll Forming Machine

FMS Roll Forming Machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek metalowych ośmiokątnych, ocynkowana 60 mm 70 mm

Woltaż:

380 V 50 Hz 3 fazy

Zdolność produkcyjna:

15-20 m/min

Szerokość karmienia:

915 mm

Wymiar (L*W*H):

5000*600*900

Waga:

3500 kg

Podstawowe komponenty:

Motor, plc

Materiał rolkowy:

Stal Gcr15, chromowana

Podkreślić:

Octagonal Tube Axis Roll Forming Machine

FMS Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

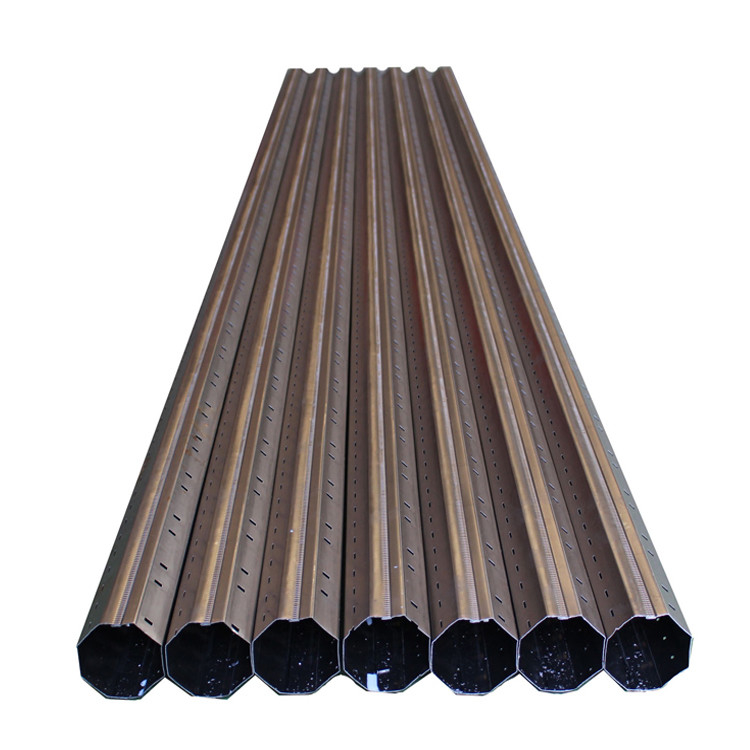

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm

Cangzhou Famous produce high quality Octagonal Tube Roll Forming Machine Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.

Shutter slats work with shutter channels and bottom curtains to form a complete shutter door system. And it widely used in shops door,Garage door, shopping mall door, etc.

We also manufacture various kinds of roll forming machine for producing the following products. Such as Roof Tile, Wall Panel, Floor Deck, C & Z Purlin, Highway Guardrail, Sandwich Panel, Downspout etc

Specification

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm
Metal material thickness	0.3 - 0.6mm
Metal material width	235mm or as client require
Roller Stage	20 forming rows
Roller Material	Gcr15 steel with chromium plate
Diameter of shaft	Φ60mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H Steel
Side Panel of Machine	25mm
Cutting Type	No Stop Sawing Cutting
Motor power	5.5 kw
Hydraulic power	3 kw
Productivity	15-20 meters per minute
Plc control system	Delta or as customer require

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
