C Purlin Steel Frame C Channel Roll Forming Machine / Making Machinery

C Purlin Roll Forming Machine

C Frame Roll Forming Machine

C Channel Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Materiały rolkowe:

45#stal

Główny silnik:

4KW

Grubość produktu:

1,0-2,0 mm

Silnik maszyny:

Silnik hydrauliczny o mocy 22 kW

Materiał tnący:

Stal formierska CR12 z obróbką hartowaną

Waga:

1,5 t

Rozmiar formowania:

7000 mm * 800 mm * 1000 mm

Rolki produktowe:

Podkreślić:

C Purlin Roll Forming Machine

C Frame Roll Forming Machine

C Channel Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Nago z plastikową folią.

Czas dostawy

45 dni światowych

Zasady płatności

T/t, l/c

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

C Purlin Steel Frame Making Machinery C Channel Roll Forming Machine

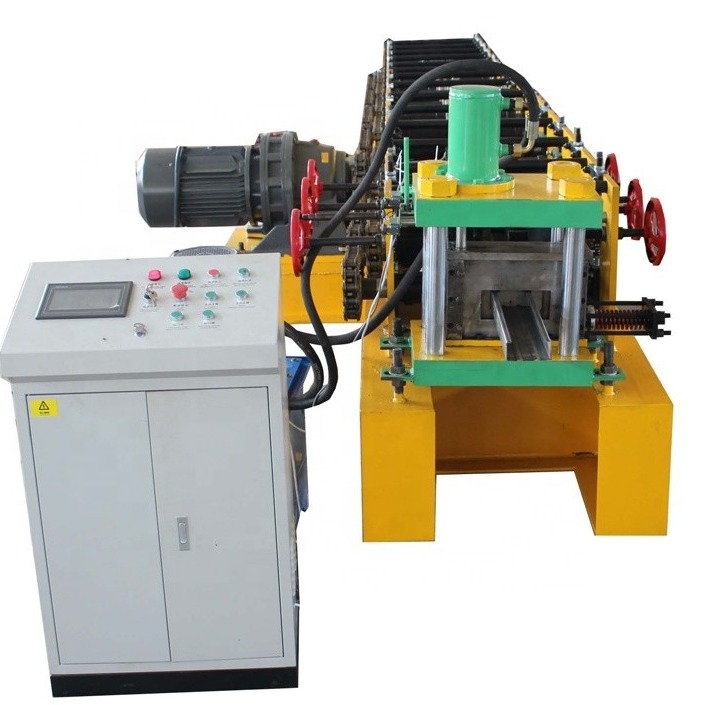

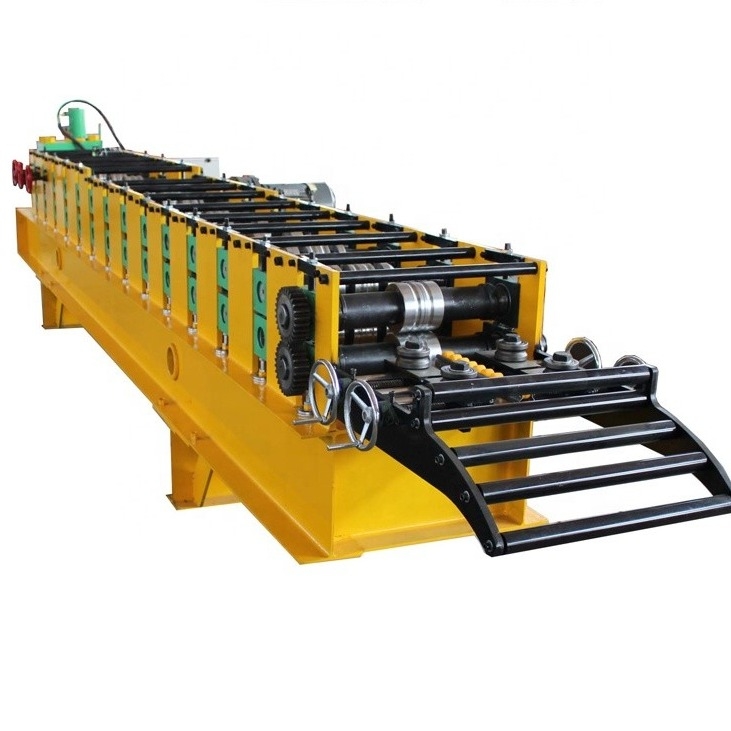

The C Purlin Steel Frame Making Machinery C Channel Roll Forming Machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The Manual galvanized steel C U purlin roll forming machine / C channel purlin machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 10 to 15 meters per minute, and the normal operation speed is 8 to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Thickness	1-2mm
Roller Station	18 Stations
Weight	2500 kg
Power	4KW
Production Capacity	15-20m/min
Warranty of core components	1.5 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
