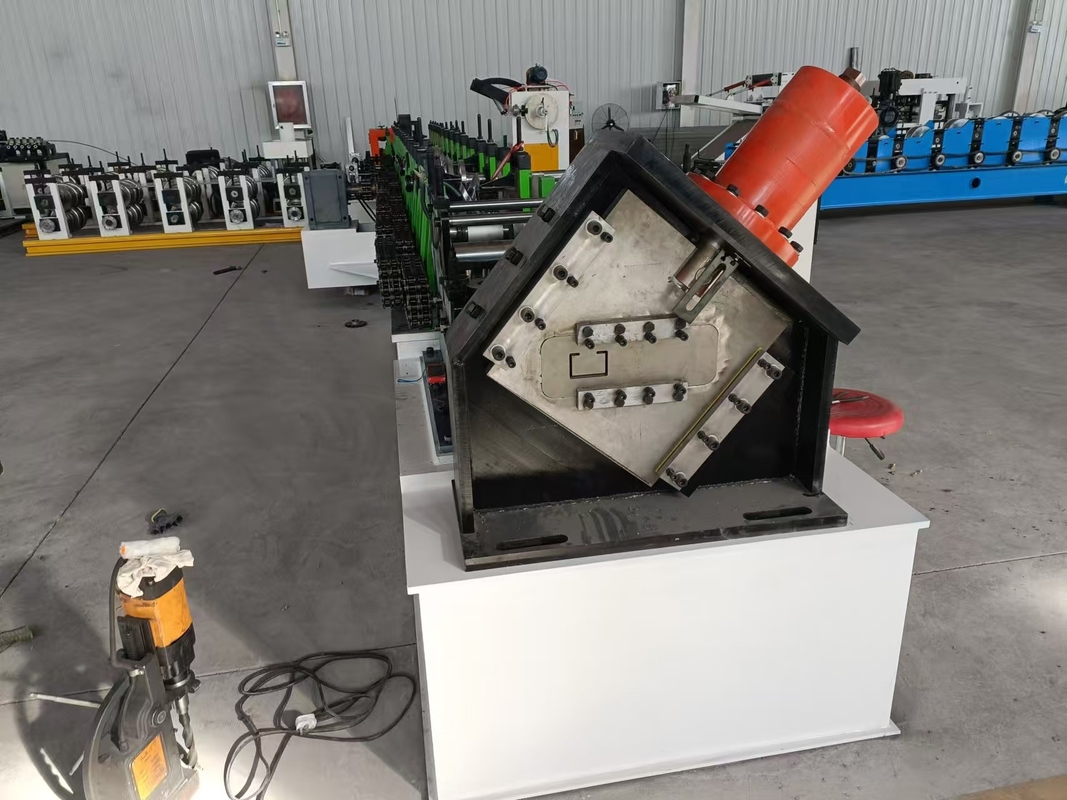

Size Adjustment 80-300mm C Purlin Roll Forming Machine Fully Automatic

300mm C Purlin Roll Forming Machine

80-300mm Roll Forming Machine

Size Adjustment Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

W pełni automatyczna maszyna do formowania rolek płatwi CZ do regulacji rozmiaru 80-300 mm

Podstawowe komponenty:

Plc (marka importowana)

Ciśnienie pracy:

16 MPa

Woltaż:

380 V lub 415 V

Wymiar (L*W*H):

10,5 m*1,35 m*1,75 m

Automatyzacja:

Automatyczny

Materiał z ostrza:

Kr 12 Mov

Podkreślić:

300mm C Purlin Roll Forming Machine

80-300mm Roll Forming Machine

Size Adjustment Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm.Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm,Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined,
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling,Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie),Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON),It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters,Combined with: PLC, Inverter, TouchScreen, Encoder, etc.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
Roller Station	18 Stations Roll Forming Machine
Weight	11000 kg
Power	22KW
Production Capacity	20m/min
Warranty of core components	1.5 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
