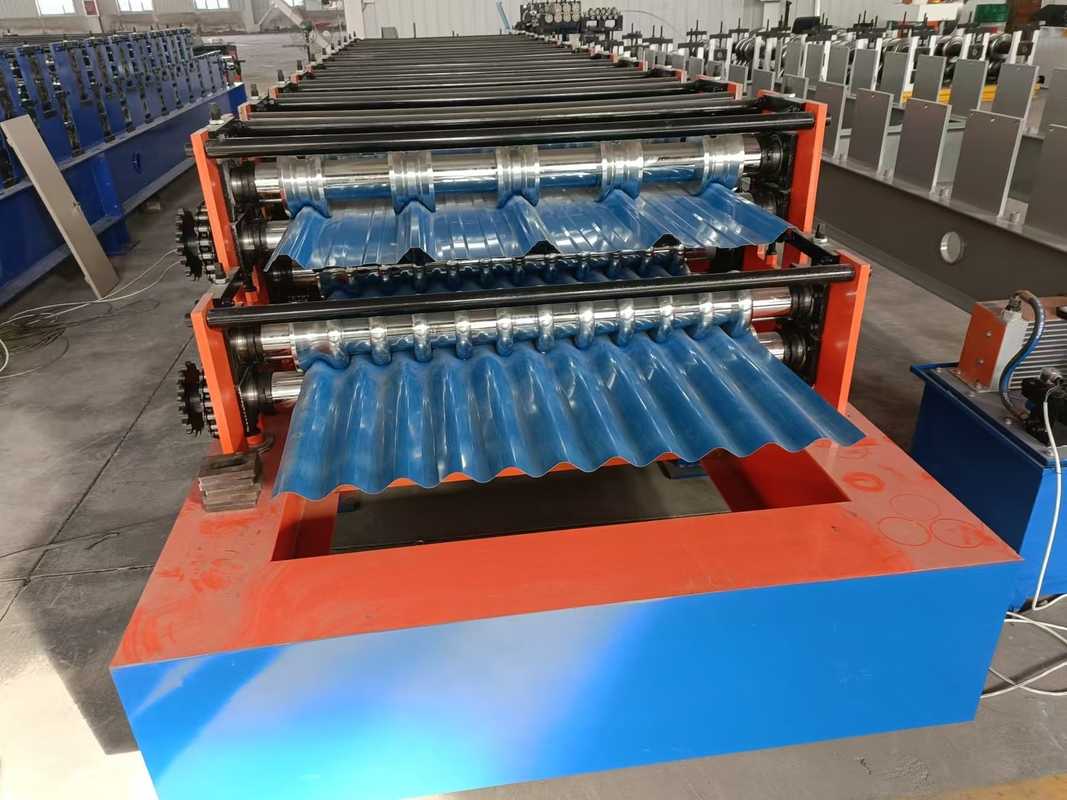

Name: Roof Use Double Layer Double Deck Roofing Sheet Roll Forming Machine Roof Tile Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 15000.00 USD
Availability: InStock

Do domu > produkty > dwuwarstwowa maszyna do formowania rolek >

Roof Use Double Layer Double Deck Roofing Sheet Roll Forming Machine Roof Tile Making Machine

Roof Tile Making Roll Forming Machine

Roof Use double layer forming machine

Roof Tile double layer forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Wysokiej jakości automatyczna maszyna do formowania rolek dwuwarstwowych Maszyna do produkcji płytek

Wymiar (L*W*H):

6*1,5*1,3 m

Surowiec:

PPGI

Prędkość pracy:

8-15 m/min

Grubość rolki:

0,3-0,8 mm

Materiał wału:

45# stal

Zasilanie:

380 V/50 HZ, 3 P lub dostosuj

Profil:

Zgodnie z życzeniem klienta

Materiał z ostrza:

Stal wysokiej jakości Cr 12

System sterowania:

Plc (marka importowana)

Podkreślić:

Roof Tile Making Roll Forming Machine

Roof Use double layer forming machine

Roof Tile double layer forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory priceDouble Layer Roof sheetForming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

High Quality Automatic Double Layer Roll Forming Machine Color Steel Tile Making Machine

High Quality Automatic Double Layer Roll Forming Machine Color Steel Tile Making Machine

The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screws which makes the machine flexible and stronger. All the components of the machine are from brand-famous enterprises so they ensure the machine's normal function very effectively. It makes different shapes of color steel roof sheet, which is used for buildings, factories, supermarkets, etc. We adopt the automatic length-fixed forming and cutting to guarantee the length is precise and the finished product clear without deforming. It is very easy to install the equipment and suitable for production in the factory. Low noise with high efficiency.

Specification

Part Details	Item Name	Specification
Material	Raw material	PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	Depending on the customer's drawing
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6×1.5×1.3 m
	Machine weight	About 5.5 ton
	Machine color	As the customer's request
	Working speed	8-15 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	5.5 kW
	Pump power	7.5 kW
	Voltage	380v/50HZ,3P, or customize as customer's request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capacity	5 ton
	Price	Free as Gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as Gift

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

.

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
