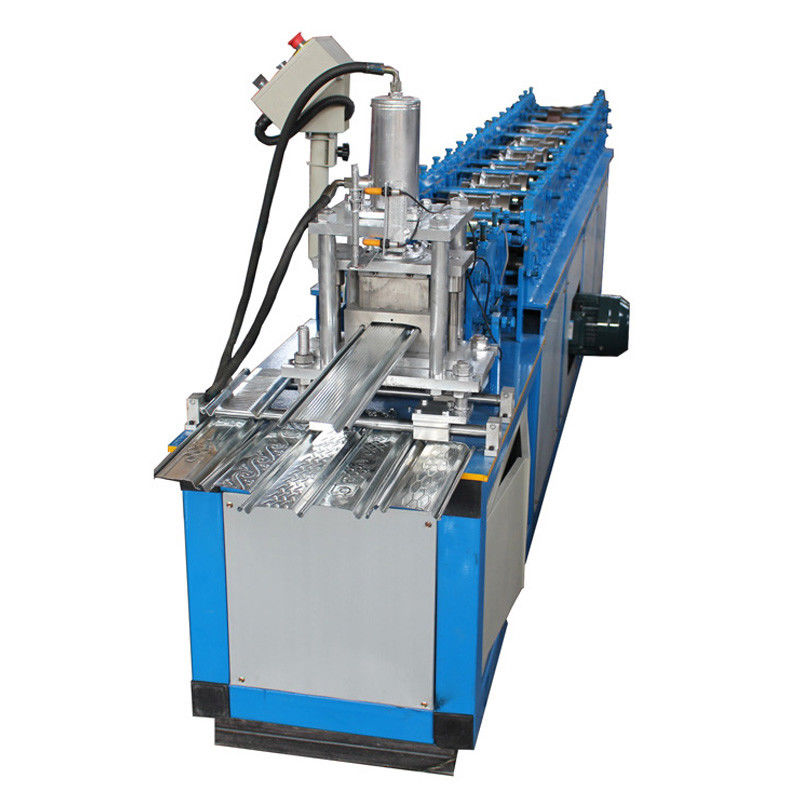

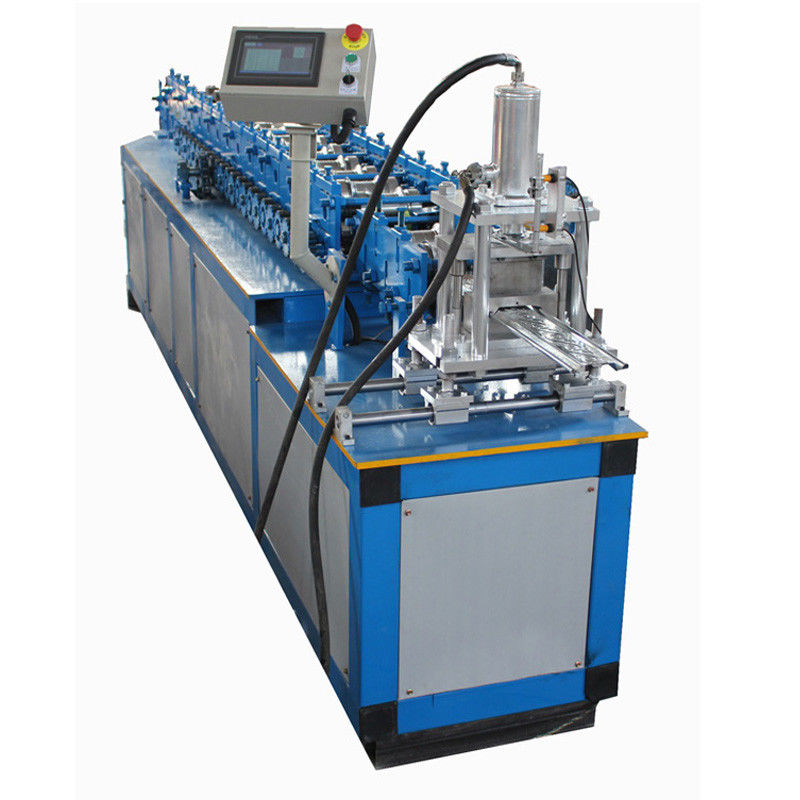

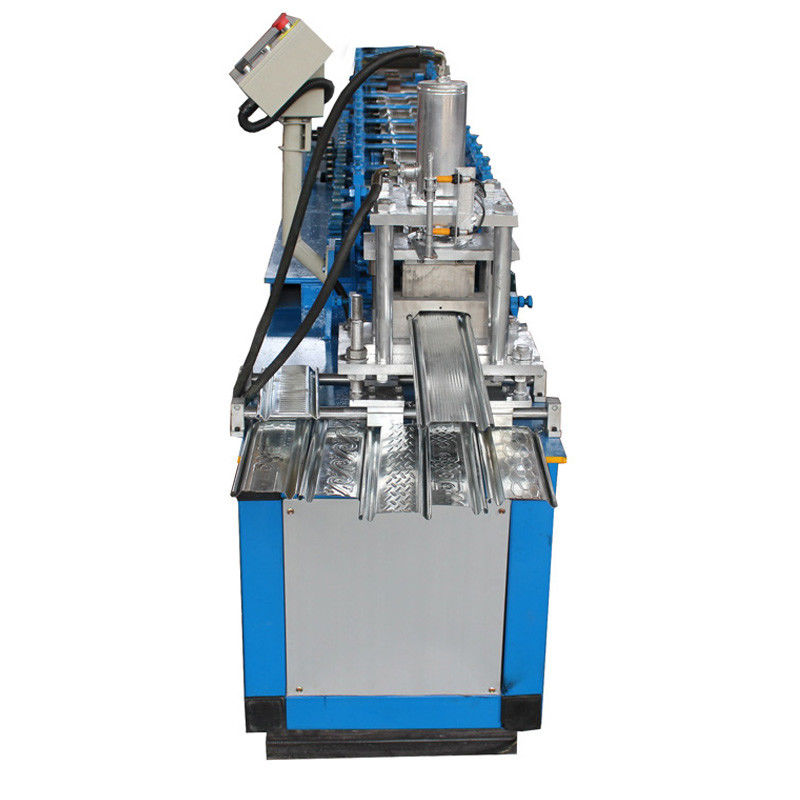

Shutter door Slat roll forming Machine
High Speed Roller Shutter Door salt Profile Roll Forming Machine,it is used for making shutter door panels ,this roll forming machine is widely used in norways ,material thickness is 0.7-1.0mm ,we can customer the designs as your request ,also we can make U guide rail machine ,shutter door bottom rail machine ,don'r hesitate if you have any request .
1.The main parts: roll forming machine; molding press; cutting machine; PLC computer control; hydraulic system.
2. The machine is stable, with no noise, no shake.
3. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable.
4. Cutting machine is characterized by stable driving, easy operation.
5. The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise.
6. Material: galvanized, colored steel or aluminum coil.
7. We can make and design the kinds of roll forming machines according to customer's requests
Specification
| Roller material |
Cr12 steel |
| Material Thickness |
0.7-1.0 mm |
| Working Speed |
8-15 m/min |
| Forming motor power |
5.5KW |
| Hydraulic station motor power |
4KW |
| Driving mode |
11 inch chains |
| Diameter of shaft |
¢70mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
