0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine

0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine

double layer roof roll forming machine

IBR corrugated tile sheet machine

0.3-0.8mm sheet metal forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE

Numer modelu:

podwójna warstwa

Skontaktuj się z nami
Poproś o wycenę
Szczegóły produktu
Odpowiedni materiał:
PPGI, GI
Stacje formujące:
11-18 grup
Port ładowania:
Port Tianjin
Zasilanie:
380 V, 50 Hz, 3 faza
Słowo klucz:
Automatyczny
Typ cięcia:
Cięcie hydrauliczne
Rodzaj napędu:
1.2 Łańcuch
Główna moc:
5,5 kW
Moc stacji hydraulicznej:
4KW
prędkość toczenia:
8-15 m/min
Podkreślić:

double layer roof roll forming machine

,

IBR corrugated tile sheet machine

,

0.3-0.8mm sheet metal forming machine

Warunki płatności i wysyłki
Minimalne zamówienie
1 zestaw
Cena
negotiable
Zasady płatności
T/t, l/c
Możliwość Supply
20 zestawów miesięcznie
Opis produktu

0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine



The double laye roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 8to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.



Specification

Warranty of core components 1 Year
Voltage 380V 50Hz
Weight 5000kg
Production Capacity 8-15m/min
Power 5.5Kw
Dimension(L*W*H) about 7500*1200*1200mm
Applicable Material GI,PPGI (According to customer requirements)
Production Capacity 8-15M/Min
Voltage 380V.50HZ.3Phase
Roll material 45# high grade steel
Frame thickness 16mm
Core Components Motor, PLC
Roll stations 12
Rolling thinckness 0.3-0.7mm

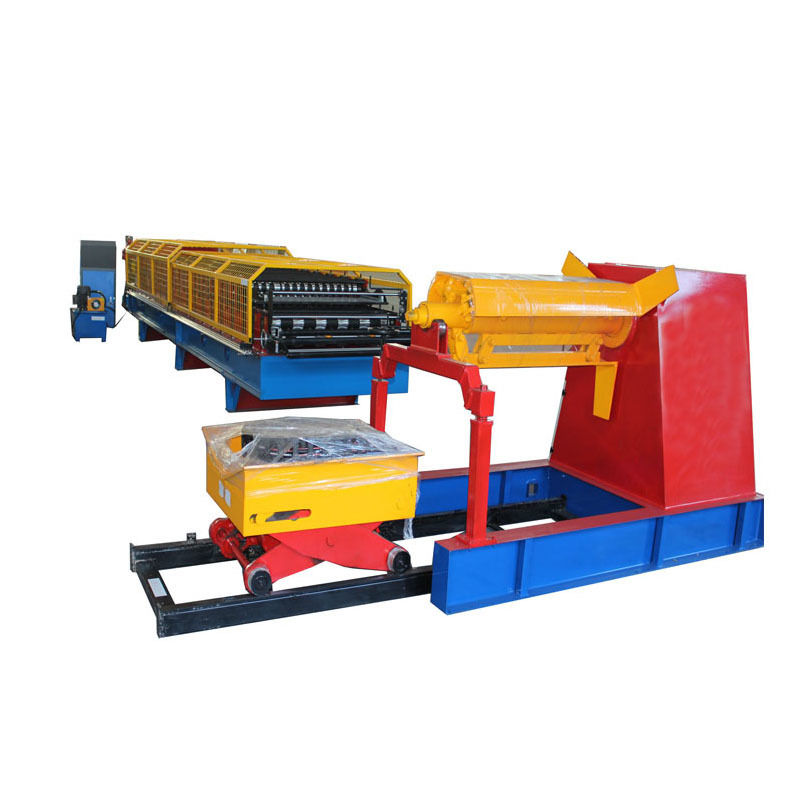

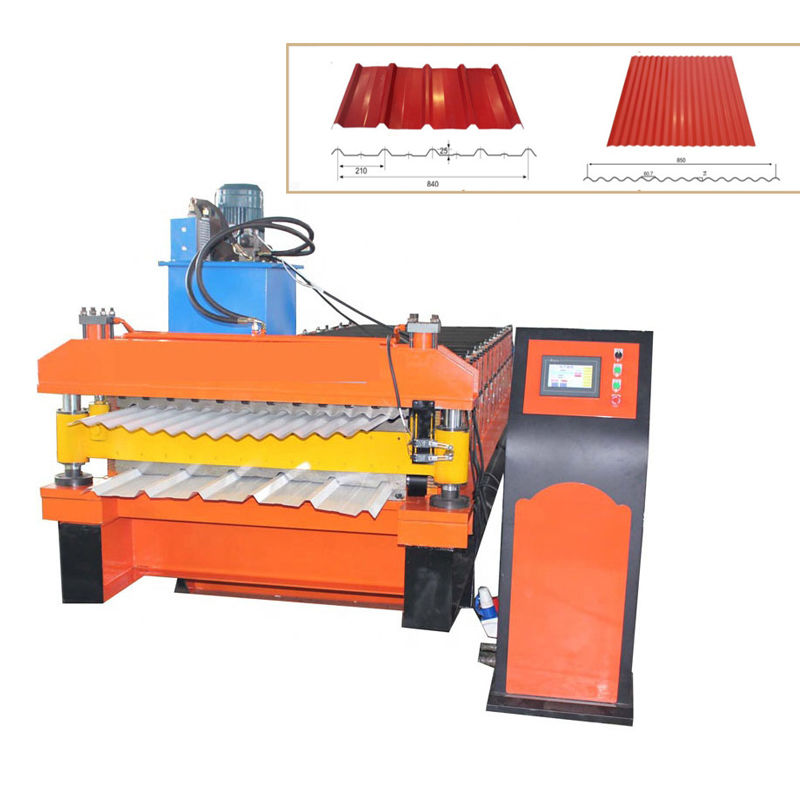

0.3-0.8mm Double Layer Roof Roll Forming Machine Ibr & Corrugated Tile Sheet Making Machine 0


Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation


Payment terms
40% in advance as down payment
60% is paid before the shipment is processed



Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.


RFQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts ,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

4. Are you manufacturer or trading company?
We are manufacturer and trading company .

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
