Name: Automatic Cold Roll Forming Macine For Z/c Purlin
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: W pełni automatyczna maszyna do płatwi C
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

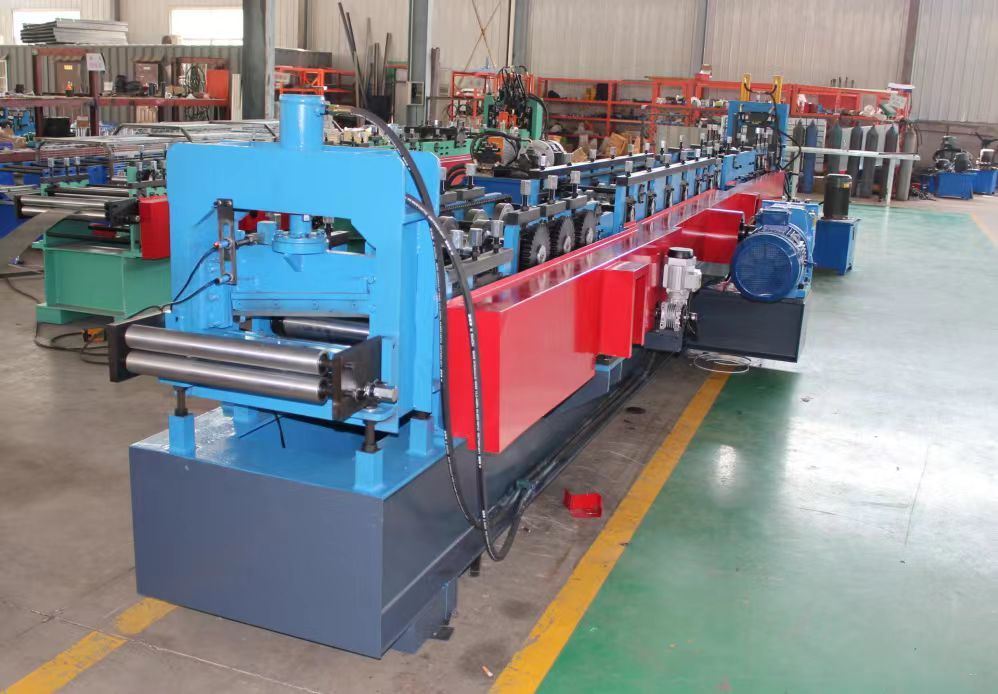

Automatic Cold Roll Forming Macine For Z/c Purlin

automatic cold roll forming machine

Z purlin roll forming machine

C purlin roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

W pełni automatyczna maszyna do płatwi C

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

W pełni automatyczna maszyna do formowania rolek płatwi z metalowymi pokryciami dachowymi

Surowiec:

Galvalume, ocynkowane

Wymiar (L*W*H):

7000 mm*1500 mm* 1500

Grubość materiału:

1 mm - 3 mm

Waga:

4 tony

Gwarancja:

1 rok

Podkreślić:

automatic cold roll forming machine

Z purlin roll forming machine

C purlin roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P.

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Automatic Cold Roll Forming Macine For Z/c Purlin

This model is full automatic production. Especially, exchange the different sizes by computer control and more faster. Only 1-2 minites can finished the changing size.

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	10- 20 m/min ( not including the cutting time)
4	Roller Station	16 Raws
5	Dimension (LWH)	8000 mm1000 mm1300 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

C Purlin Size

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

Damage occurs due to a natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
