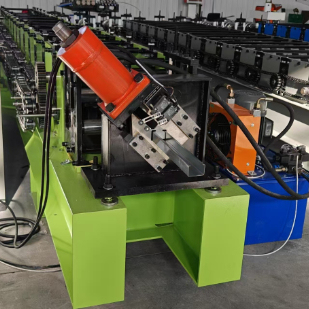

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Woltaż:

380 V 50 Hz 3 faza

Waga:

8500 kg

Materiał rolkowy:

45# stal chromowana

Grubość:

1,5-3 mm

Typ cięcia:

Cięcie hydrauliczne

System sterowania:

PLC

Kluczowe punkty sprzedaży:

Automatyczny

Zdolność produkcyjna:

30 m/min

Główna moc silnika:

7,5 kW

Podkreślić:

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C.

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Full Automatic Strip Steel C/Z/U Purlin Roll Forming Machine

Product Advantages

Our C/Z purlin interchangeable roll forming machine offers superior performance compared to competitors:

Produces purlins with exceptional straightness and crush resistance
Enables reverse lap capability for Z purlins, enhancing connection strength
Precision control via reduced motor and frequency regulation for speed, length, and positioning
Quick and easy interchangeability between C and Z profiles

Purlins are essential structural components in roofing systems, supporting rafters and roof beams. Our machine produces lightweight steel purlins that perfectly meet roof structure requirements while maintaining strength and durability.

Applications: Ideal for medium-sized industrial and civil construction projects including factories, warehouses, aircraft hangars, exhibition halls, theaters, stadiums, and commercial buildings as primary load-bearing structures.

Technical Specifications

Main motor power	7.5kw
Hydraulic motor power	4kw
Hydraulic Pressure	10-12MPa
Voltage	380V/50HZ/3Phase
Control System	PLC (Delta brand)
Feeding Material	Galvanized steel
Feeding Thickness	1.5-4.0mm
Speed	30-50m/min
Roller station	18 rows
Shaft diameter	80mm
Shaft material	45# steel
Roller material	45# steel
Cutter material	Cr12 quenched
Dimension	1100012001500mm
Weight	about 6700 kg

Warranty & Guarantee

1-year guarantee against manufacturing defects (excluding electrical components)
Warranty void in cases of:
- Damage from natural disasters
- User error or improper operation
- Unauthorized modifications
- Damage during relocation after installation

Payment Terms

40% advance payment required
60% balance payment before shipment

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 30 days after receiving down payment
