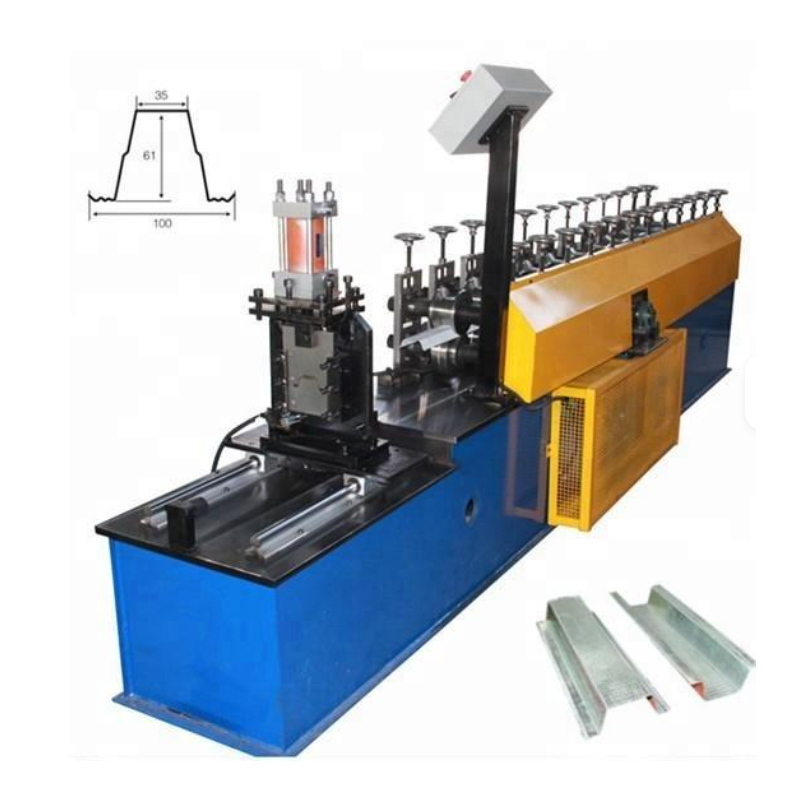

Name: Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Stój i śledź
Price: 40,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do tworzenia rolki z kołkami i ścieżkami >

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Omega profile steel framing machine

light keel roll forming machine

top hat channel forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Stój i śledź

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek z profilami Omega, lekkim kilem i stalową ramą Top Hat

Wymiar (L*W*H):

6,5*0,85*1,2 m

Surowiec:

Galvalume, ocynkowane

Prędkość pracy:

10 - 20 m/min

Materiał z ostrza:

Stal wysokiej jakości Cr 12

Moc silnika:

4KW

Waga:

3000 kg

Woltaż:

380 V/50 HZ, 3 fazy (na życzenie klienta)

Grubość materiału:

0,4-0,8 mm

Podkreślić:

Omega profile steel framing machine

light keel roll forming machine

top hat channel forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Product Description

Omega Sheet Metal Roll Forming Line Machine Fully Automated

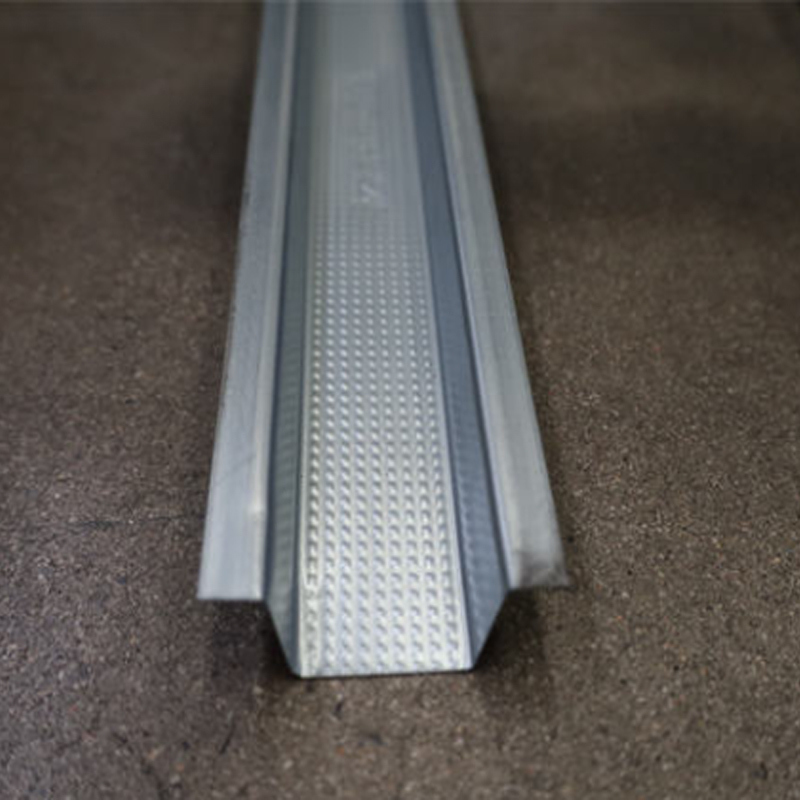

Metal framings used in concealed grid gypsum ceiling of light weight structure include furring channel, carrying channel, studs, tracks, wall angle, and main frame channel.

Optional: Embossing logos on the frames is a great way that most of our customers choose to impress their customers about their brands.

Specification

Description	Explanation
Working speed	10-20 m/min (Shear time is not included)
Pressed plate thickness	0.3-1mm
Control mode	Panasonic PLC
Number of molding passes	18 lanes [Electric width adjustment]
Roll material	Gcr15 quenching of steel after finishing HRC58-62℃, surface chrome plating
Shaft material and diameter	45# Steel finishing, Shaft diameter is￠76mm
Main engine power	5.5kw
Power of hydraulic station	3kw
Hydraulic pressure	12Mpa

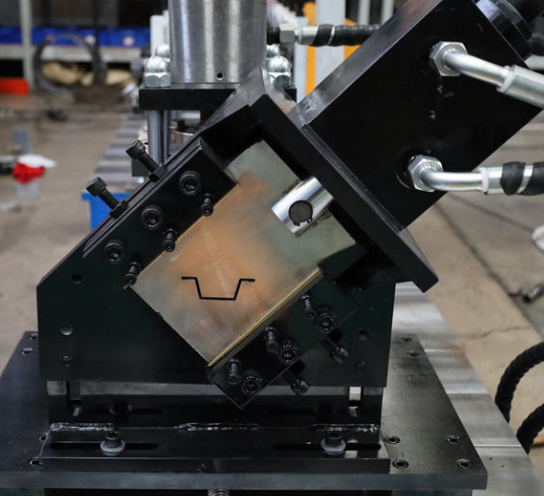

Scissors material	Cr12Mov, quench HRC 58-62℃
Length tolerance	3m±1.5mm
Voltage	380V, 50HZ, 3 phase (According to customer requirements can be adjusted)
Transmission mode	1.0 inch double row chain
Equipment form	Card structure
Equipment color	Company color
Equipment size	LWH--11.5m1.6m1.2m
Date of delivery	45 days
Payment method	30% advance charge, 70% pay off on delivery

Payment Terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 45 days after the down payment is received.

Packing and Shipping

Packaging: Naked with Plastic Film.

Shipping: Via sea freight to nearest port (customer arranges inland transport). Shipping fees calculated based on destination.

FAQ

1. Does one machine can only produce one style panel profile?

Not exactly. For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?

Our machine's warranty period is 12 months. If the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost yourself. If after warranty period, we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?

Yes, please tell me the destination port or address. We have rich experience in transport.

4. Are you manufacturer or trading company?

We are manufacturer and trading company.

5. Do you provide customized?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?

1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
